Aeroqual FM S900

Product Overview

The Series 900 offers flexibility with a variety of outputs and configurations, allowing it to function in three different ways:

• Relay Controller: Configurable set points allow the Series 900 to control an external device such as an ozone generator or trigger an alarm.

• Gas Transmitter: Via the 4-20 mA output, it connects to a PLC or current sensing device, providing gas concentration data for health and safety applications.

• Monitoring Network: The RS485 digital output enables gas monitoring across multiple indoor locations, with data logged centrally.

The Series 900 is lightweight, discreet, wall-mountable, and operates with a 12V power supply that can be user-configured for various installation locations. Free configuration and networking software is available, making it easy to set up alarm and control points and log data from a monitor network to a single PC.

What can it measure? The Series 900 is equipped to measure a wide range of gas pollutants through swappable sensor heads.

Included in the product:

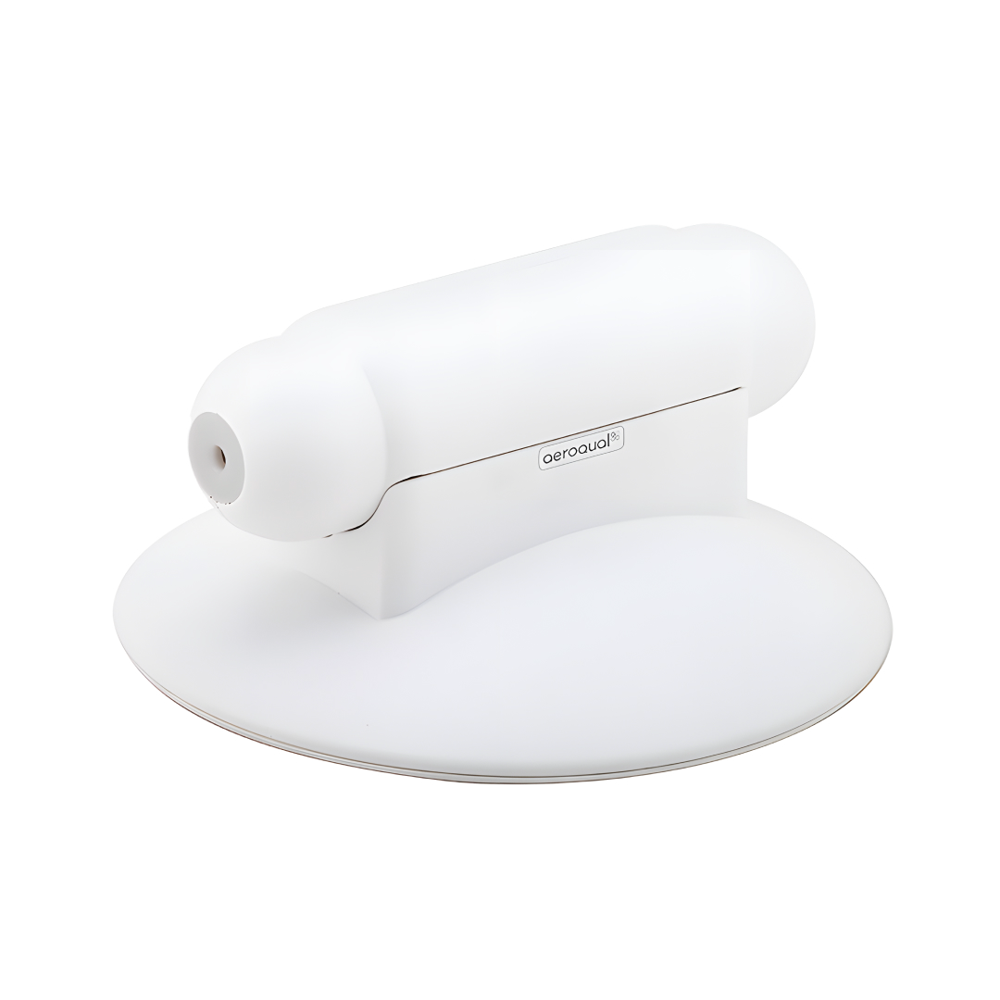

• Series 900 monitor base
• 4-20 mA analog output
• RS485 digital output
• Low alarm, high alarm, control, and diagnostic signal functions
• Gas sensor head with calibration certificate (specification required)
• Wall mounting kit

Optional accessories:

• Temperature and relative humidity sensor
